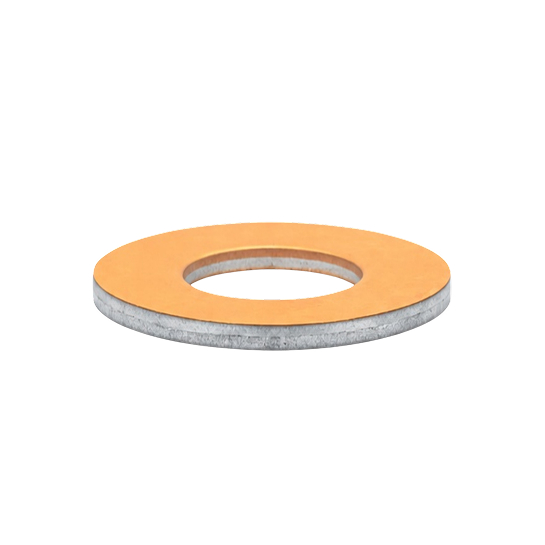

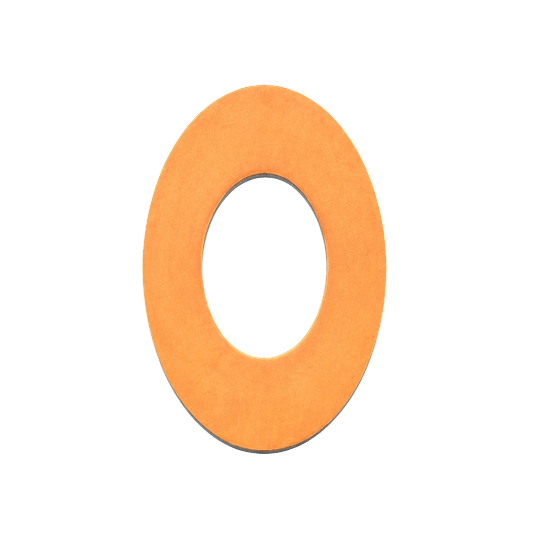

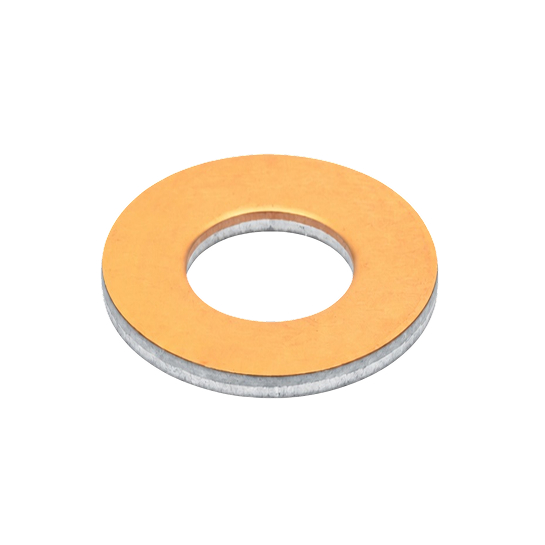

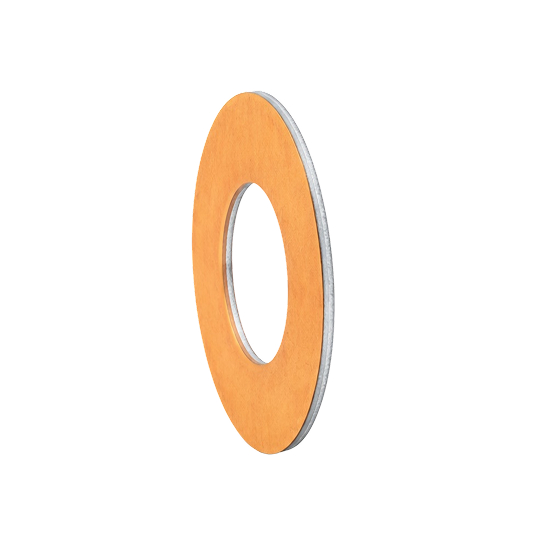

Bimetallic Washers
Welcome to Sachin Shims Private Limited, your trusted partner for high-quality Bimetallic Washers and more! As a leading Bimetallic Washers supplier and exporters in Mumbai, we take pride in providing top-notch solutions for your industrial needs. Our mission is to deliver excellence with every product we offer.
ISO 9001: 2015 CERTIFIED
EXPORT TO 30+ COUNTRIES
DIMENSIONS & ORDERING
Models, Sizes & Specifications
8 standard models covering dimensions from 40mm up to 300mm. Custom sizes available on request.
Available Materials
Pack Configuration
- Tab-type shims: 8 dimensions × 10 thicknesses
- SE single-slot: 5 dimensions × 10 thicknesses
- Pack size: 10 pieces per thickness
Bimetallic Washer Specifications, Sizes And Schedules
| Specifications | Sizes And Schedules |
|---|---|
| Minimum Order Quantity | 100 Unit |
| Packaging Type | ROLL |
| Bimetallic Material | Aluminium and Copper |
| Shape | Round |
| Size | M3 to M100 |
| Surface Finish | Metal Coated |
| Standard | AISI, ASTM, DIN, GB |
| Material | Aluminium |
| Thickness | 2-8mm |
Bi Metal Washers Techanical Behaviour
| Bimetal Washers | Base layer thickness (mm) | Cover layer thickness (mm) |
|---|---|---|
| Cu-Al block | Cu δ38~40 | Al δ10~12 |
| Al-Steel block | Steel δ38~40 | Al δ10~12 |
Physical Properties of Belleville Washers
| Element | Tensile Strength | Shearing Strength | Heat Temperature | Interface Combination Rate | Interface Full Figure |
|---|---|---|---|---|---|
| Bimetal Washers | ≥150 Mpa/mm² | ≥95 Mpa/mm² | ≤ 400 ℃ | 100% | Undulant |
