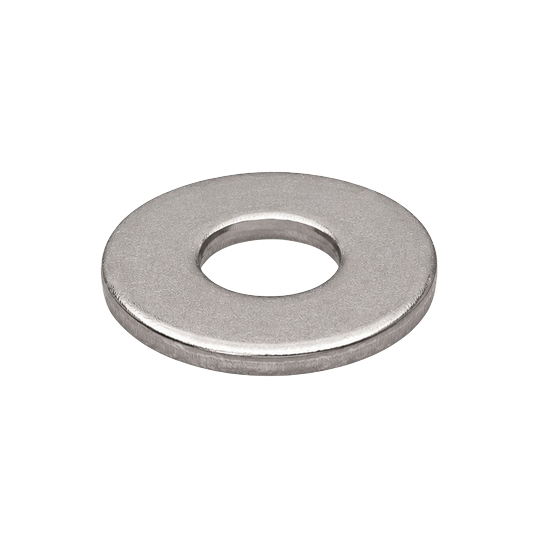

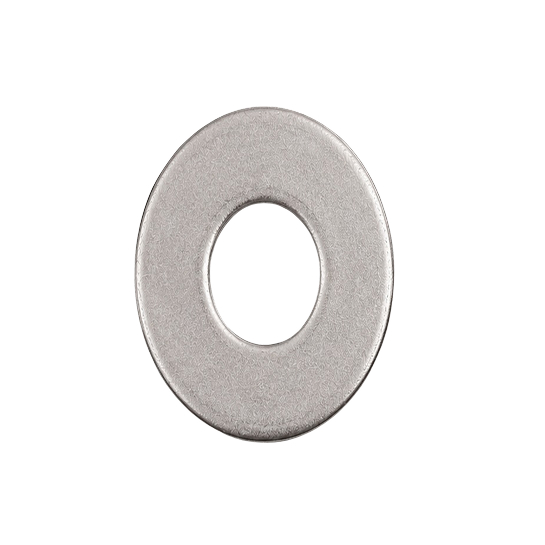

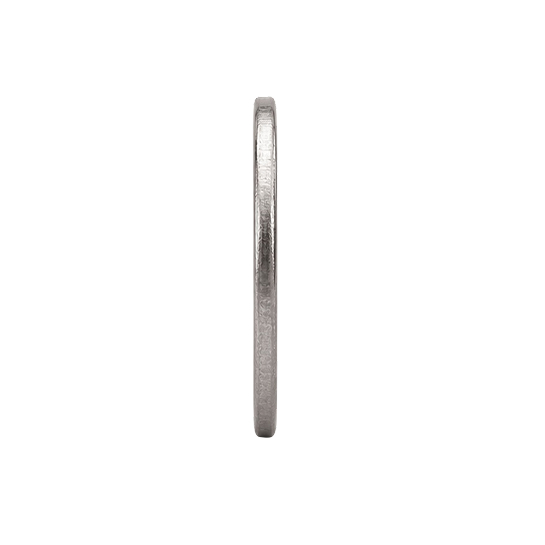

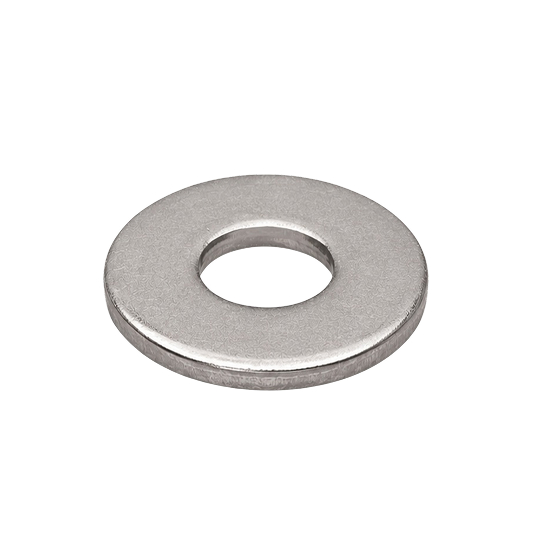

Thrust Washer

Sachin Shims Private Limited manufactures and supplies high-quality Thrust Washers for industrial and mechanical applications. We offer standard and custom-made thrust washers designed for load distribution, reduced friction, and reliable performance in rotating assemblies.

Thrust Washer Specifications

Thickness:0.2 mm to 2.0 mm and above
Sizes: Available in metric (mm) and inch sizes as per DIN, IS, JS, BS, and American Standards
Materials:Stainless Steel, Brass, Copper, Mild Steel, Aluminium, Fibre, Rubber, Plastic, Teflon, Carbon Steel, Spring Steel, and more

ISO 9001: 2015 CERTIFIED

EXPORT TO 30+ COUNTRIES

DIMENSIONS & ORDERING

Models, Sizes & Specifications

Available in standard and custom sizes with multiple thickness options for secure locking applications. Manufactured as per DIN, IS, JS, BS, and American Standards for industrial use.

Available Materials

Stainless Steel Brass Copper Mild Steel (M.S.) Aluminium Plastic

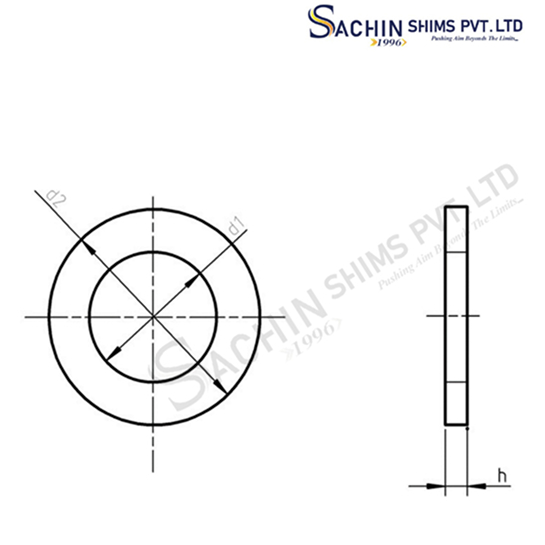

Size	For Thread	D1	D2	H
1,7	M1,6	1,84	4	0,35
1,8	M1,7	1,94	4,5	0,35
2,2	M2	2,34	5	0,35
2,5	M2,3	2,64	6	0,55
2,7	M2,5	2,84	6	0,55
2,8	M2,6	2,94	7	0,55
3,2	M3	3,38	7	0,55
3,7	M3,5	3,88	8	0,55
4,3	M4	4,48	9	0,9
5,3	M5	5,48	10	1,1
6,4	M6	6,62	14	1,8
7,4	M7	7,62	14	1,8
8,4	M8	8,62	16	1,8
10,5	M10	10,77	20	2,2
13	M12	13,27	24	2,7
15	M14	15,27	28	2,7
17	M16	17,27	30	3,3
19	M18	19,33	34	3,3
21	M20	21,33	37	3,3
23	M22	23,33	39	3,3
25	M24	25,33	44	4,3
27	M26	27,33	50	4,3
28	M27	28,33	50	4,3
29	M28	29,33	50	4,3
31	M30	31,39	50	4,3
33	M32	33,62	60	5,6
34	M33	34,62	60	5,6
36	M35	34,62	66	5,6
37	M36	37,62	66	5,6

Where Washers Are Used

Washers are used wherever fast, precise alignment is critical — across all major industrial sectors.
