Ogee Washer

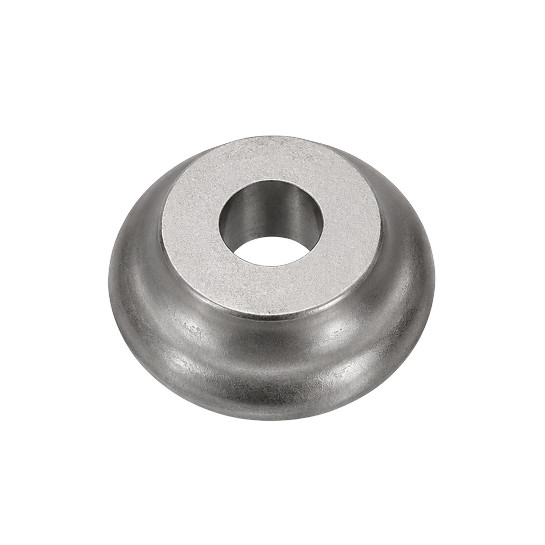

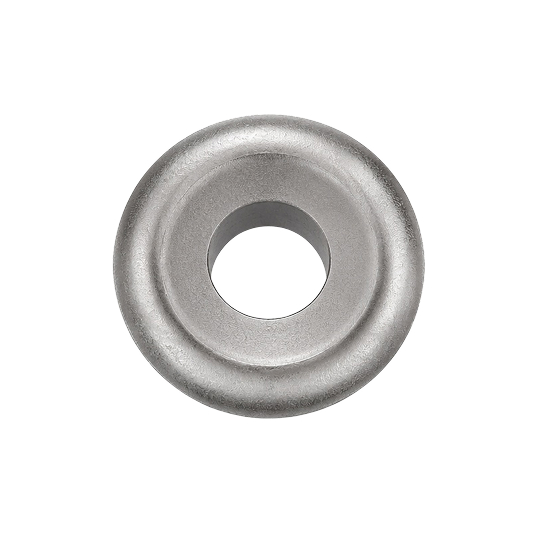

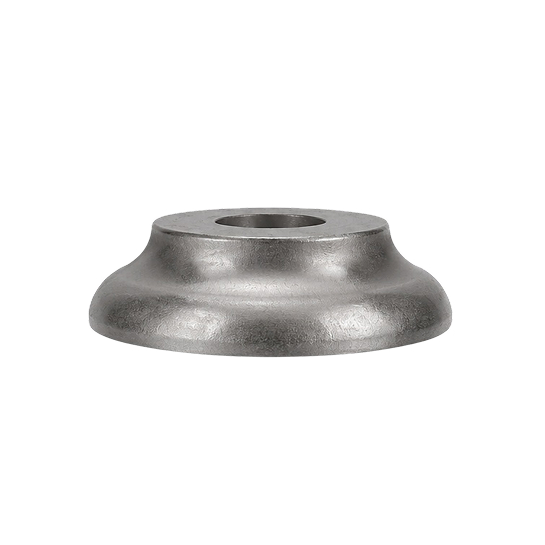

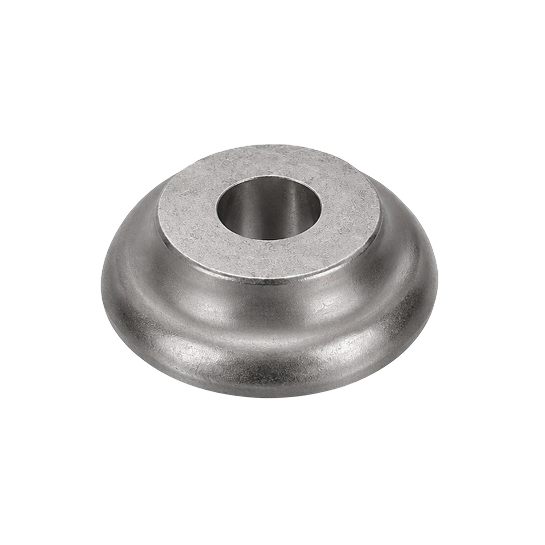

An Ogee washer is a washer with a curved or S-shaped profile designed to distribute pressure evenly and create a secure connection between surfaces. It improves stability, reduces material damage, and is widely used in construction, industrial, and heavy-duty fastening applications.
ISO 9001: 2015 CERTIFIED
EXPORT TO 30+ COUNTRIES
Key Features
Designed to provide superior load distribution, durability, and an aesthetically refined finish across a wide range of applications.
Features a distinctive S-shaped profile that distributes pressure evenly and helps prevent material damage during tightening.
The curved shape spreads load effectively across the surface, improving support and connection stability.
Suitable for use with metal, wood, and other materials while helping reduce corrosion between surfaces.
Provides a polished and professional appearance, making it ideal for visible fastening applications.
Manufactured from durable materials such as stainless steel, brass, and galvanized steel for long-lasting protection.
Available in various sizes and thicknesses and can be customized to meet specific project requirements.
Models, Sizes & Specifications
Ogee Washer are available in sizes from M3 to M100+. Thickness ranges from 0.5 mm to 5 mm as per requirement.
Available Materials
Pack Configuration
- Tab-type shims: 8 dimensions × 10 thicknesses
- SE single-slot: 5 dimensions × 10 thicknesses
- Pack size: 10 pieces per thickness
Washer Specifications, Sizes And Schedules
| Bolt Size (Top Outside Diameter) | A (Bottom Outside Diameter) | B (Thickness) | T | Weight |
|---|---|---|---|---|
| 1/2 | 1-3/8 | 2-3/8 | 1/2 | 48 |
| 5/8 | 1-5/8 | 2-3/4 | 5/8 | 62 |
| 3/4 | 1-7/8 | 3 | 3/4 | 71 |
| 7/8 | 2 | 3-1/2 | 7/8 | 115 |
| 1 | 2-1/2 | 4 | 1 | 150 |
| 1-1/8 | 2-1/2 | 4-1/4 | 1-1/8 | 249 |
| 1-1/4 | 2-1/2 | 4-1/2 | 1-1/4 | 286 |
| 1-1/2 | 3 | 5-1/2 | 1-1/2 | 412 |
