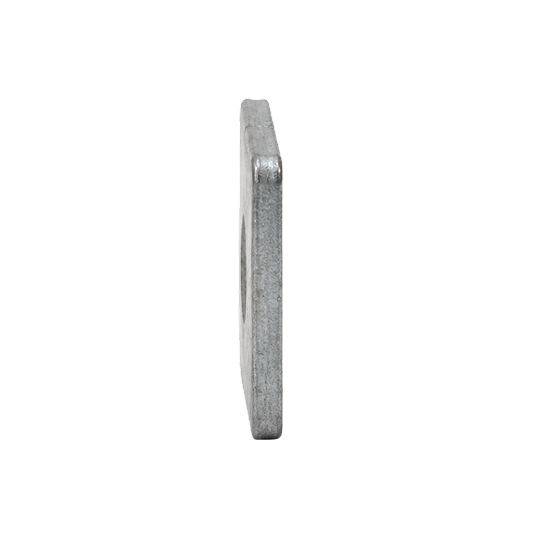

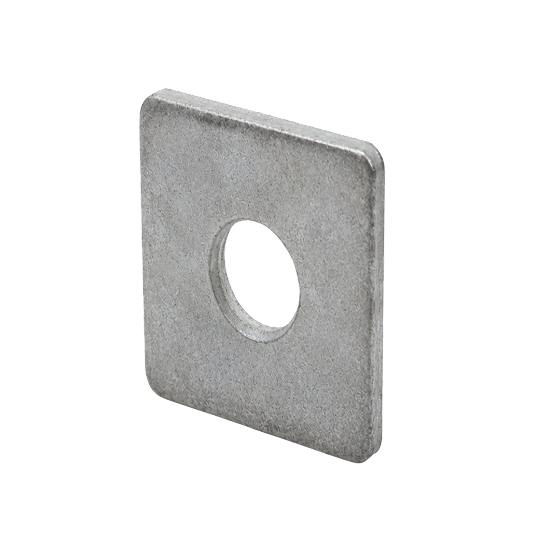

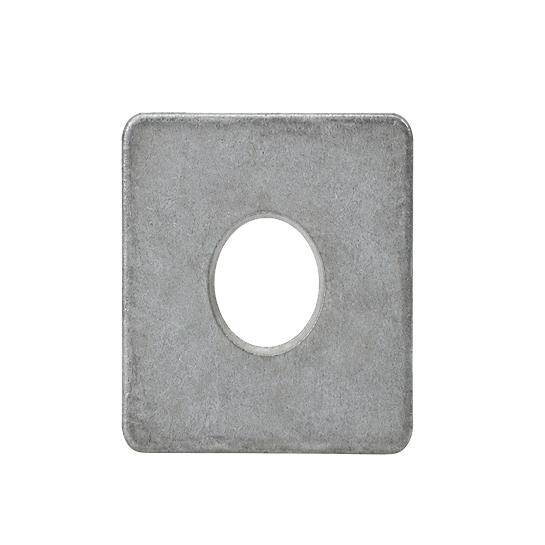

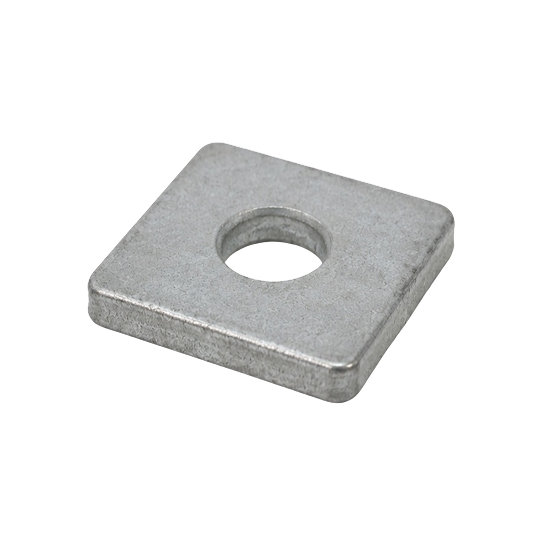

Sqaure Washers
Square washers are flat, square-shaped pieces of metal or plastic used in construction and machinery. They are placed between a bolt or screw head and the surface of the material being fastened. Their main purpose is to distribute the load more evenly, prevent damage to the surface, and provide a stable base for the fastener. Square washers are similar to round washers but have a square shape.
ISO 9001: 2015 CERTIFIED
EXPORT TO 30+ COUNTRIES
Key Features
Designed to provide superior load distribution, durability, and an aesthetically refined finish across a wide range of applications.
Provides a stable and even base for fasteners, ensuring reliable support across the fastening surface.
Distributes fastening loads over a larger area, reducing stress concentration and preventing material damage.
Helps protect surfaces from deformation and wear by spreading pressure evenly beneath the fastener.
The square design enhances fastening stability and helps minimize loosening under uneven loads.
Available in metal, stainless steel, plastic, and other materials to meet different strength and application requirements.
Offered in a range of sizes and thicknesses to accommodate various fasteners and project specifications.
Models, Sizes & Specifications
Sqaure Washers are available in sizes from M3 to M100+. Thickness ranges from 0.5 mm to 5 mm as per requirement.
Available Materials
Pack Configuration
- Tab-type shims: 8 dimensions × 10 thicknesses
- SE single-slot: 5 dimensions × 10 thicknesses
- Pack size: 10 pieces per thickness
Washer Specifications, Sizes And Schedules
| Bolt Size | Top Outside Diameter (A) | Bottom Outside Diameter (B) | Thickness (T) | Weight (grams) |
|---|---|---|---|---|
| 1/2 | 1-1/4 | 2-1/4 | 1/8 | 45 |
| 5/8 | 1-1/2 | 2-1/2 | 5/32 | 60 |
| 3/4 | 1-1/4 | 2-3/4 | 3/16 | 80 |
| 7/8 | 2 | 3 | 7/32 | 105 |
| 1 | 2-1/4 | 3-1/4 | 1/4 | 135 |
| 1-1/8 | 2-1/2 | 3-1/2 | 5/16 | 200 |
| 1-1/4 | 2-3/4 | 4 | 3/8 | 240 |
| 1-1/2 | 3 | 4-1/2 | 7/16 | 350 |
