Sealing Washers

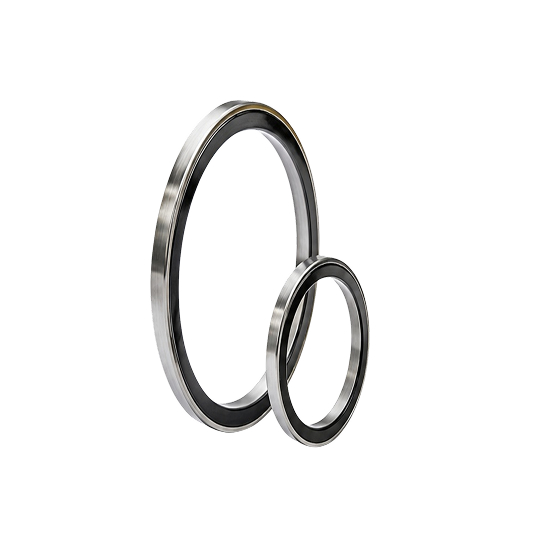

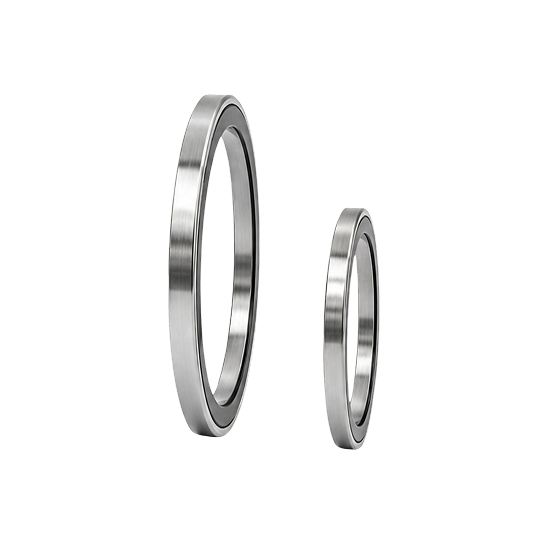

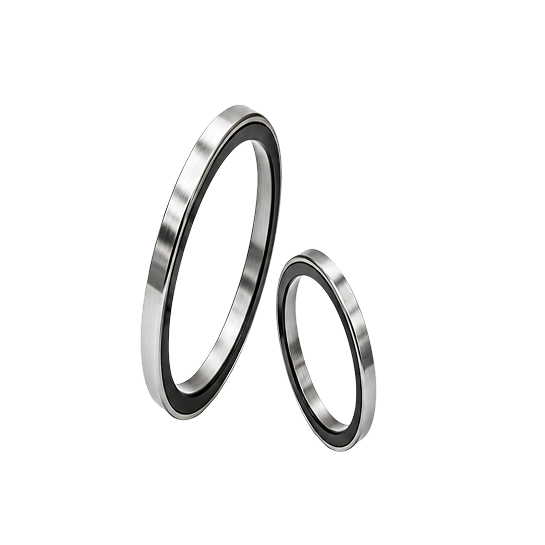

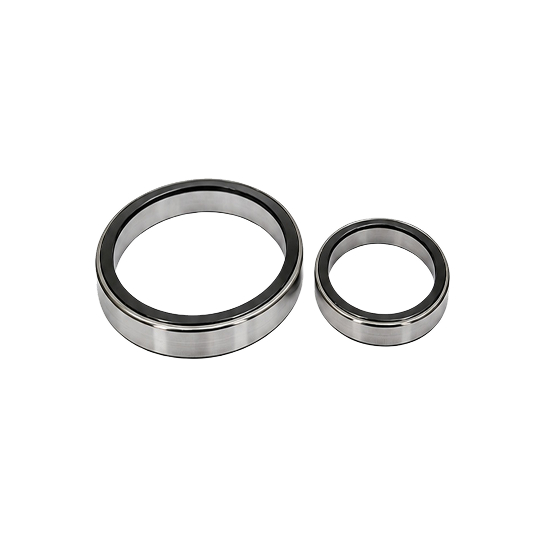

A sealing washer is a specialized washer with a rubber or polymer layer that creates a tight, leak-proof seal between surfaces. It prevents leakage of liquids and gases, making it ideal for plumbing, automotive, and industrial applications where reliable sealing under pressure is required.

ISO 9001: 2015 CERTIFIED

EXPORT TO 30+ COUNTRIES

WHY SEALING WASHER

Key Features

Manufactured with precision and high-quality materials to ensure reliable performance across industrial applications.

Precision Manufacturing Process

Manufactured using Die-Punch Process and Laser Cutting.

Premium Stainless Steel Construction

Made Of High-Quality Stainless Steel (Grade 304/316/321), Allowing Re-use.

Perfectly Flat & Burr-Free

Perfectly flat and completely burr-free for precision performance.

Reliable Sealing Performance

Engineered to provide a secure and effective seal, preventing leaks and ensuring reliable performance.

Reusable & Reliable Seal

Offers reusability without compromising its sealing ability, ensuring consistent performance.

Easy Identification Marking

Permanently marked with specifications for easy identification.

DIMENSIONS & ORDERING

Models, Sizes & Specifications

Sealing washers are available in sizes from M3 to M100+. Thickness ranges from 0.5 mm to 5 mm as per requirement.

Available Materials

Stainless Steel (SS304/SS316) Brass Copper Mild Steel Spring Steel

Pack Configuration

Tab-type shims: 8 dimensions × 10 thicknesses
SE single-slot: 5 dimensions × 10 thicknesses
Pack size: 10 pieces per thickness

Sealing Washer Specifications, Sizes And Schedules

Size	For thread	D1	D2	H
1,7	M1,6	1,84	4	0,35
1,8	M1,7	1,94	4,5	0,35
2,2	M2	2,34	5	0,35
2,5	M2,3	2,64	6	0,55
2,7	M2,5	2,84	6	0,55
2,8	M2,6	2,94	7	0,55
3,2	M3	3,38	7	0,55
3,7	M3,5	3,88	8	0,55
4,3	M4	4,48	9	0,9
5,3	M5	5,48	10	1,1
6,4	M6	6,62	14	1,8
7,4	M7	7,62	14	1,8
8,4	M8	8,62	16	1,8
10,5	M10	10,77	20	2,2
13	M12	13,27	24	2,7
15	M14	15,27	28	2,7
17	M16	17,27	30	3,3
19	M18	19,33	34	3,3
21	M20	21,33	37	3,3
23	M22	23,33	39	3,3
25	M24	25,33	44	4,3
27	M26	27,33	50	4,3
28	M27	28,33	50	4,3
29	M28	29,33	50	4,3

Where Washers Are Used

Washers are used wherever fast, precise alignment is critical — across all major industrial sectors.
