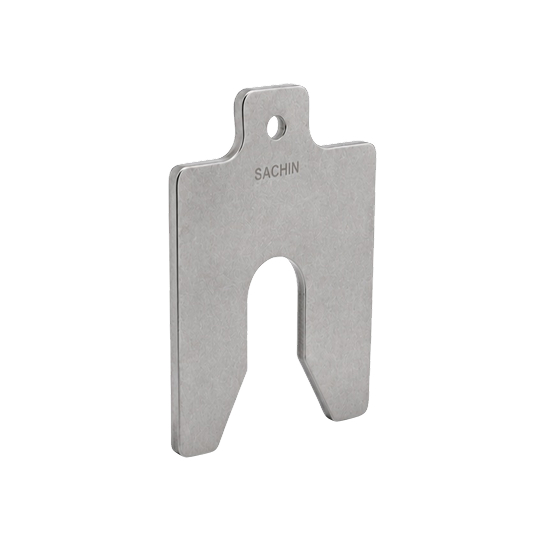

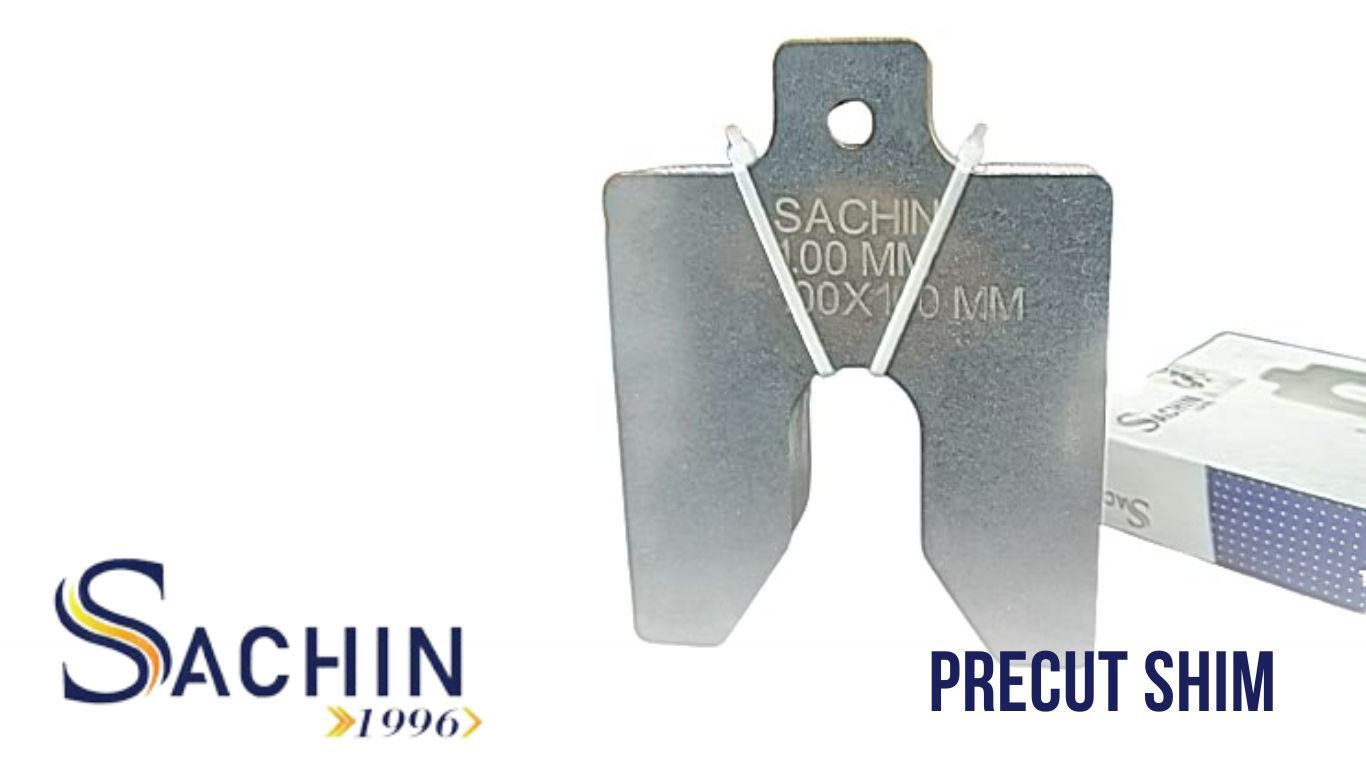

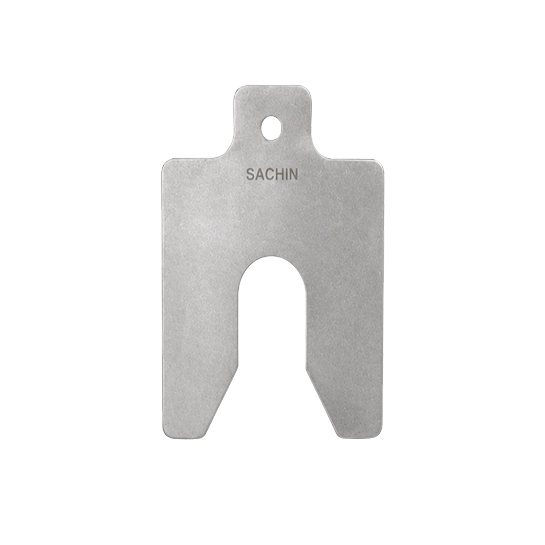

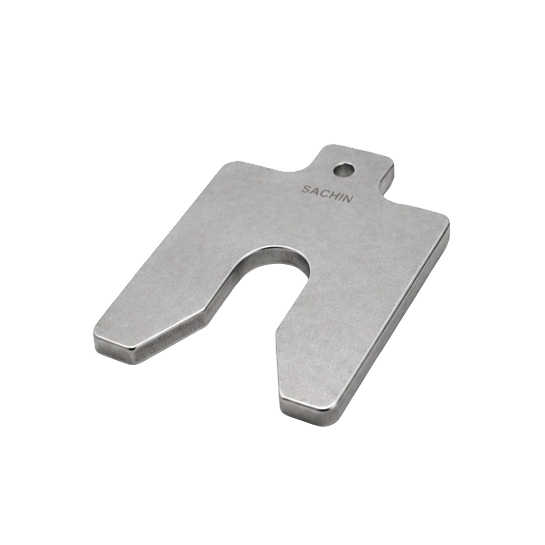

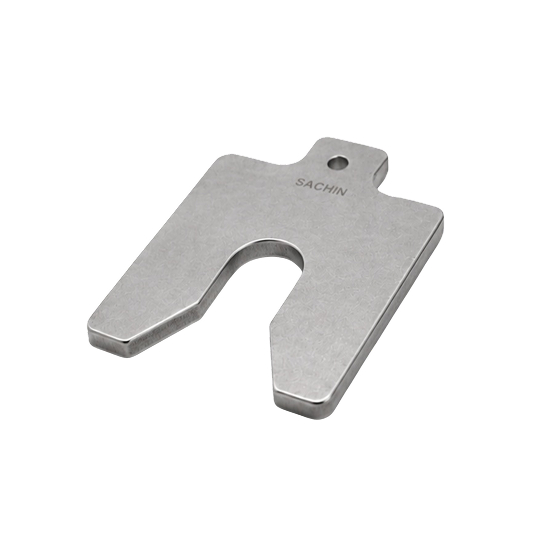

Pre-Cut Shim
Your gateway to superior precision and reliable performance. At Sachin Shims, a leading Shim Manufacturers based in the bustling city of Mumbai, India, we take immense pride in being prominent specialists in SS Shims and Brass Shim solutions. Our Pre-Cut Shims bring a new dimension to your projects, ensuring impeccable alignment, spacing, and accuracy. Explore this page to discover the world of Pre-Cut Shims and why we stand out as your top choice.
Available in 6 standard sizes and customized shim is also available
ISO 9001: 2015 CERTIFIED
EXPORT TO 30+ COUNTRIES
Key Features
Engineered for exact tolerances — from standard sheets to fully customised profiles for any industrial application.
Pre-cut to standard dimensions — no on-site cutting required. Drop into position and align.
Die-punch and laser cutting delivers burr-free edges and a perfectly flat surface every time.
Each shim is permanently stamped with its thickness for instant identification in the field.
Made in SS 304/316/321 — corrosion resistant and durable enough to be reused across jobs.
SE single-slot pre-cut shims available in 5 dimensions for easy insertion around bolts/shafts.
Available in Stainless Steel, Brass, Copper, Mild Steel, Aluminium, and Plastic.
Models, Sizes & Specifications
8 standard models covering dimensions from 40mm up to 300mm. Custom sizes available on request.
Available Materials
Pack Configuration
- Tab-type shims: 8 dimensions × 10 thicknesses
- SE single-slot: 5 dimensions × 10 thicknesses
- Pack size: 10 pieces per thickness
| Model | Size | Minimum Quantity |
|---|---|---|
| SEP 1 | 40 X 40 X 12mm | 20 Nos. |
| SEP 2 | 50 X 50 X 15mm | 20 Nos. |
| SEP 3 | 75 X 75 X 20mm | 20 Nos. |
| SEP 4 | 100 X 100 X 27mm | 20 Nos. |
| SEP 5 | 130 X 130 X 30mm | 20 Nos. |
| SEP 6 | 175 X 150 X 33mm | 20 Nos. |
| SEP 7 | 250 X 200 X 36mm | 20 Nos. |
| SEP 8 | 300 X 250 X 40mm | 20 Nos. |
