Spacer Disc

Sachin Shims Private Limited manufactures and supplies high-quality Spacer Discs for industrial and mechanical applications. We provide standard and custom-made spacer discs designed for precise spacing, alignment, and reliable assembly performance.

Spacer Disc Specifications

Thickness:0.2 mm to 2.0 mm and above
Sizes: Available in metric (mm) and inch sizes as per DIN, IS, JS, BS, and American Standards
Materials:Stainless Steel, Brass, Copper, Mild Steel, Aluminium, Fibre, Rubber, Plastic, Teflon, Carbon Steel, Spring Steel, and more

ISO 9001: 2015 CERTIFIED

EXPORT TO 30+ COUNTRIES

DIMENSIONS & ORDERING

Models, Sizes & Specifications

Available in standard and custom sizes with multiple thickness options for accurate spacing applications. Manufactured as per DIN, IS, JS, BS, and American Standards for industrial use.

Available Materials

Stainless Steel Brass Copper Mild Steel (M.S.) Aluminium Plastic

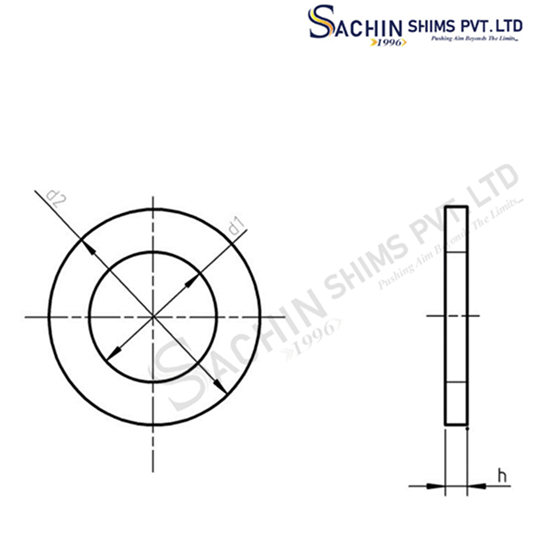

Size	For Thread	D1	D2	H
1,7	M1,6	1,84	4	0,35
1,8	M1,7	1,94	4,5	0,35
2,2	M2	2,34	5	0,35
2,5	M2,3	2,64	6	0,55
2,7	M2,5	2,84	6	0,55
2,8	M2,6	2,94	7	0,55
3,2	M3	3,38	7	0,55
3,7	M3,5	3,88	8	0,55
4,3	M4	4,48	9	0,9
5,3	M5	5,48	10	1,1
6,4	M6	6,62	14	1,8
7,4	M7	7,62	14	1,8
8,4	M8	8,62	16	1,8
10,5	M10	10,77	20	2,2
13	M12	13,27	24	2,7
15	M14	15,27	28	2,7
17	M16	17,27	30	3,3
19	M18	19,33	34	3,3
21	M20	21,33	37	3,3
23	M22	23,33	39	3,3
25	M24	25,33	44	4,3
27	M26	27,33	50	4,3
28	M27	28,33	50	4,3
29	M28	29,33	50	4,3
31	M30	31,39	50	4,3
33	M32	33,62	60	5,6
34	M33	34,62	60	5,6
36	M35	34,62	66	5,6
37	M36	37,62	66	5,6

Where Pre Cut Shim Kit Box Are Used

Pre Cut Shim Kit Box are used wherever fast, precise alignment is critical — across all major industrial sectors.
