Lock Washer

Sachin Shims Private Limited manufactures and supplies high-quality Lock Washers for machinery, automotive, and industrial applications. We offer both standard and custom-made lock washers as per customer drawings and specifications. Designed to prevent loosening caused by vibration and dynamic loads, our lock washers provide reliable fastening performance across a wide range of applications.

Lock Washer Specifications

Thickness:0.2 mm to 2.0 mm and above
Sizes: Available in metric (mm) and inch sizes
Standards: DIN, IS, JS, BS, and American Standards
Materials: Stainless Steel, Brass, Copper, Mild Steel, Aluminium, Fibre, Rubber, Plastic, Teflon, Carbon Steel, Spring Steel, High Tensile Steel, and more

ISO 9001: 2015 CERTIFIED

EXPORT TO 30+ COUNTRIES

DIMENSIONS & ORDERING

Models, Sizes & Specifications

Available in standard and custom sizes, with thicknesses from 0.2 mm onwards. Manufactured in metric and inch dimensions as per DIN, IS, JS, BS, and American Standards.

Available Materials

Stainless Steel Brass Copper Mild Steel (M.S.) Aluminium Plastic

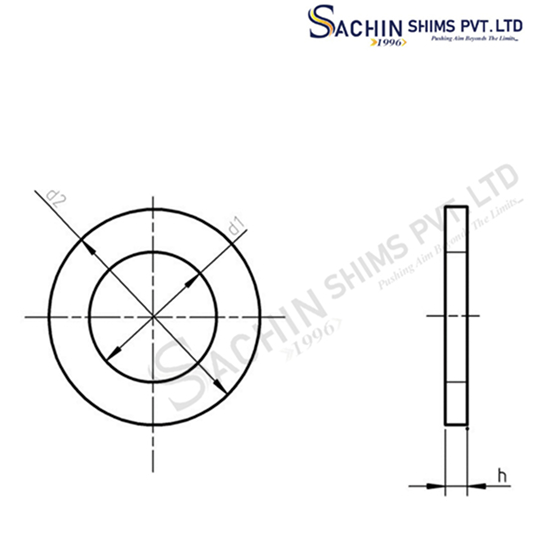

Size	For Thread	D1	D2	H
1,7	M1,6	1,84	4	0,35
1,8	M1,7	1,94	4,5	0,35
2,2	M2	2,34	5	0,35
2,5	M2,3	2,64	6	0,55
2,7	M2,5	2,84	6	0,55
2,8	M2,6	2,94	7	0,55
3,2	M3	3,38	7	0,55
3,7	M3,5	3,88	8	0,55
4,3	M4	4,48	9	0,9
5,3	M5	5,48	10	1,1
6,4	M6	6,62	14	1,8
7,4	M7	7,62	14	1,8
8,4	M8	8,62	16	1,8
10,5	M10	10,77	20	2,2
13	M12	13,27	24	2,7
15	M14	15,27	28	2,7
17	M16	17,27	30	3,3
19	M18	19,33	34	3,3
21	M20	21,33	37	3,3
23	M22	23,33	39	3,3
25	M24	25,33	44	4,3
27	M26	27,33	50	4,3
28	M27	28,33	50	4,3
29	M28	29,33	50	4,3
31	M30	31,39	50	4,3
33	M32	33,62	60	5,6
34	M33	34,62	60	5,6
36	M35	34,62	66	5,6
37	M36	37,62	66	5,6

Where Washers Are Used

Washers are used wherever fast, precise alignment is critical — across all major industrial sectors.
