Tab Washers

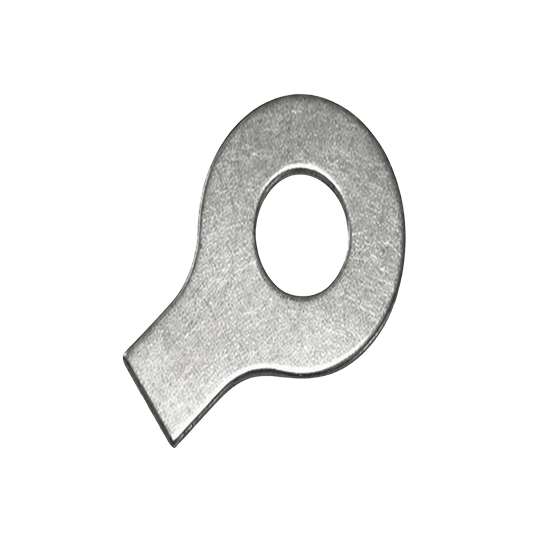

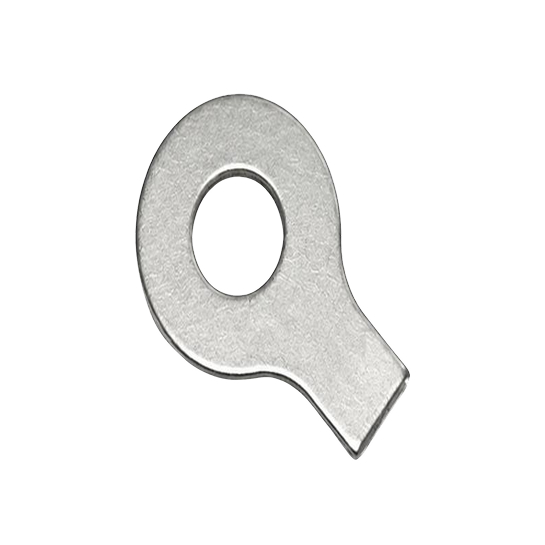

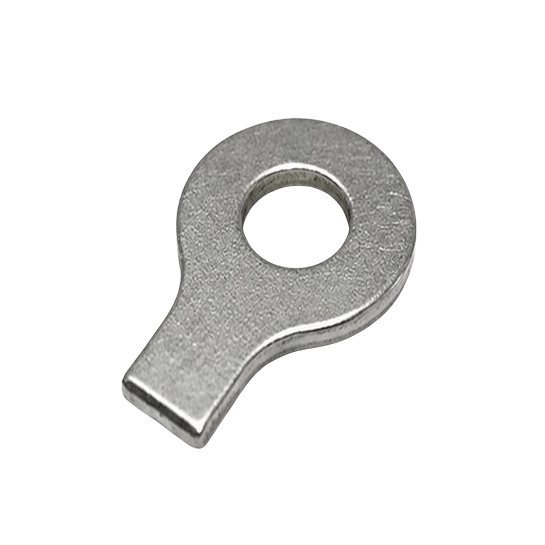

A tab washer is a flat washer with one or more tabs that can be bent to lock it in place against a bolt or nut. These tabs prevent rotation and help keep fasteners secure, especially in high-vibration or moving applications.
It is widely used for secure fastening and anti-vibration purposes in industrial assemblies to prevent loosening over time. The material can also be hardened or tempered as per required hardness specifications.
ISO 9001: 2015 CERTIFIED
EXPORT TO 30+ COUNTRIES
Key Features
Designed to provide secure fastening, prevent loosening, and enhance reliability across industrial applications.
Tab washers feature bendable tabs that securely lock nuts and bolts in place, preventing unwanted rotation and loosening.
Tab washers prevent fastener rotation by creating a secure mechanical lock that keeps nuts and bolts firmly in place.
Tab washers are available in round, rectangular, and square shapes with varied tab configurations to suit different fasteners and applications.
Tab washers made from durable materials like stainless steel, carbon steel, or other metals can withstand significant stress and prevent wear over time.
Tab washers are easy to install, allowing quick and secure fastening with simple hand tools and no specialized equipment.
Tab washers can be customized in size, thickness, and tab design to meet specific application and fastening requirements.
Models, Sizes & Specifications
Tab washers are available in sizes from M3 to M100+. Thickness ranges from 0.5 mm to 5 mm as per requirement.
Available Materials
Pack Configuration
- Tab-type shims: 8 dimensions × 10 thicknesses
- SE single-slot: 5 dimensions × 10 thicknesses
- Pack size: 10 pieces per thickness

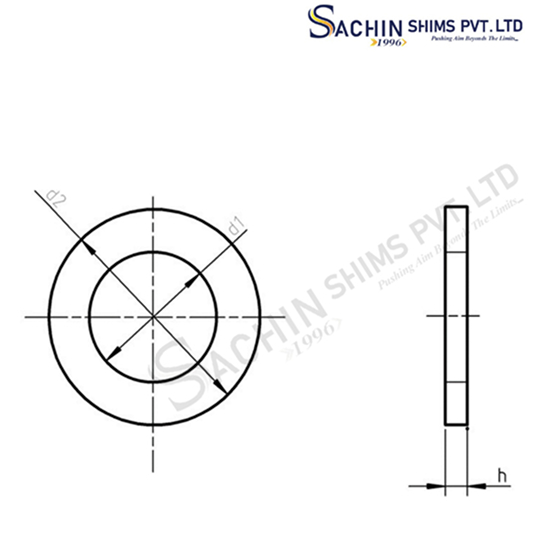

Tab Washer Specifications, Sizes And Schedules
| Bolt Size | A (Top Outside Diameter) | B (Bottom Outside Diameter) | T (Thickness) | Weight (grams) |
|---|---|---|---|---|
| 1/2 | 1-1/4 | 2-1/4 | 1/8 | 45 |
| 5/8 | 1-1/2 | 2-1/2 | 5/32 | 60 |
| 3/4 | 1-3/4 | 2-3/4 | 3/16 | 80 |
| 7/8 | 2 | 3 | 7/32 | 105 |
| 1 | 2-1/4 | 3-1/4 | 1/4 | 135 |
| 1-1/8 | 2-1/2 | 3-1/2 | 5/16 | 200 |
| 1-1/4 | 2-3/4 | 4 | 3/8 | 240 |
| 1-1/2 | 3 | 4-1/2 | 7/16 | 350 |
