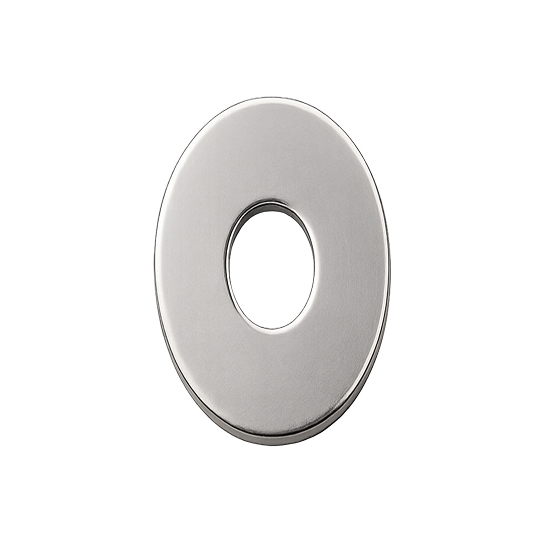

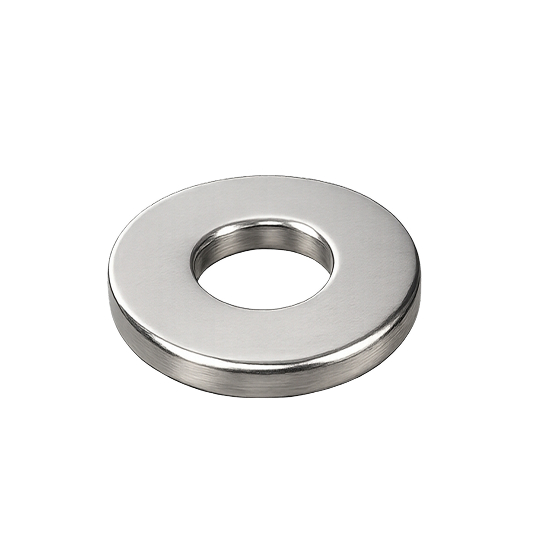

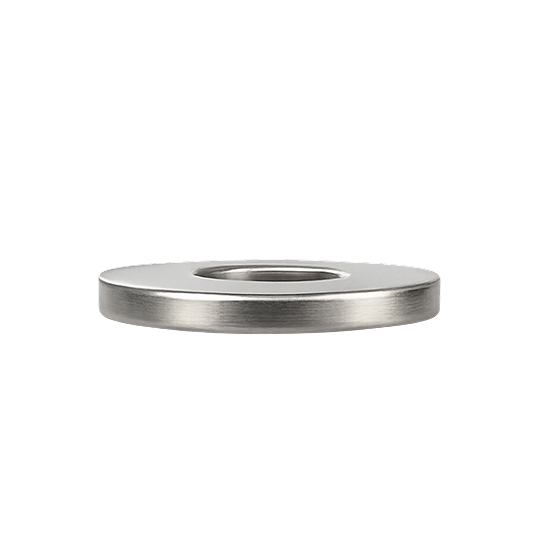

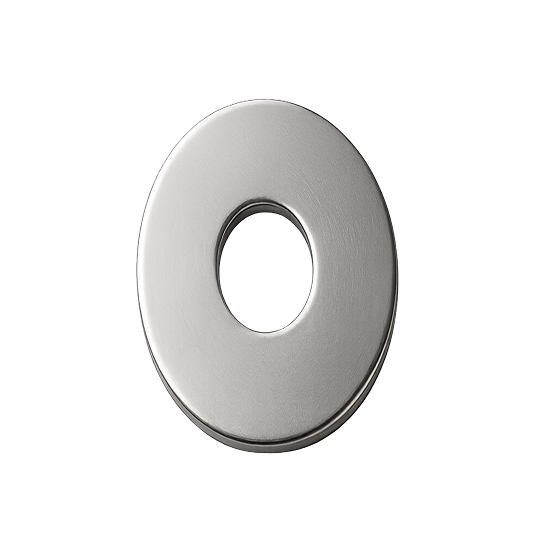

Fender Washer
Fender washers are flat, round washers with a larger diameter than regular washers and a small hole in the middle. They are used to distribute the load of a fastener (like a bolt or screw) over a larger area. This helps prevent damage to the material being fastened and can improve the stability of the connection. Think of them as wide, flat spacers that help spread the pressure out more evenly.
Key Features
Designed to provide superior load distribution, durability, and an aesthetically refined finish across a wide range of applications.
The larger outer diameter distributes fastening pressure evenly across a wider surface area, helping prevent material damage and improving load-bearing performance.
Designed with a precisely sized center hole and flat circular shape, ensuring a secure fit, excellent support, and enhanced fastening stability.
Available in steel, stainless steel, aluminum, plastic, and other materials to suit a wide range of industrial, automotive, and construction applications.
Models, Sizes & Specifications
Fender Washer are available in sizes from M3 to M100+. Thickness ranges from 0.5 mm to 5 mm as per requirement.
Available Materials
Pack Configuration
- Tab-type shims: 8 dimensions × 10 thicknesses
- SE single-slot: 5 dimensions × 10 thicknesses
- Pack size: 10 pieces per thickness
External Tooth Lock Washer Sizes and Dimensions
| Bolt Size | Top Outside Diameter (A) | Bottom Outside Diameter (B) | Thickness (T) | Weight (grams) |
|---|---|---|---|---|
| 1/2 | 1-1/4 | 2-1/4 | 1/8 | 35 |
| 5/8 | 1-1/2 | 2-1/2 | 5/32 | 45 |
| 3/4 | 1-3/4 | 2-3/4 | 3/16 | 55 |
| 7/8 | 2 | 3 | 7/32 | 70 |
| 1 | 2-1/4 | 3-1/4 | 1/4 | 95 |
| 1-1/8 | 2-1/2 | 3-1/2 | 5/16 | 130 |
| 1-1/4 | 2-3/4 | 4 | 3/8 | 160 |
| 1-1/2 | 3 | 4-1/2 | 7/16 | 220 |
External Tooth Lock Washer Specifications, Sizes And Schedules
| Specifications | Details |
|---|---|
| Sizes And Schedules | M3 to M100 |
| Minimum Order Quantity | 100 Unit |
| Packaging Type | ROLL |
| Bimetallic Material | Aluminium and Copper |
| Shape | Round |
| Surface Finish | Metal Coated |
| Standard | AISI, ASTM, DIN, GB |
| Material | Aluminium |
| Thickness | 2-8mm |
